TD2300115JGR00

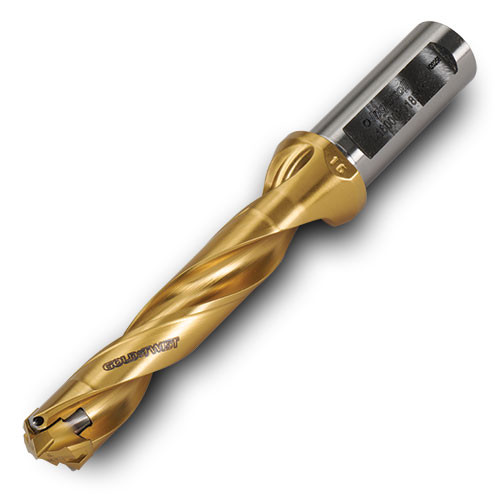

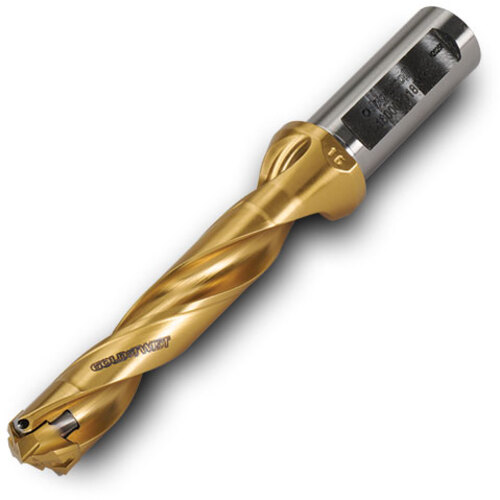

Drill; 23 mm to 23.9 mm Dia. × 32 mm Shank Dia. × 115 mm LU × 60 mm Shank Length ; 5D

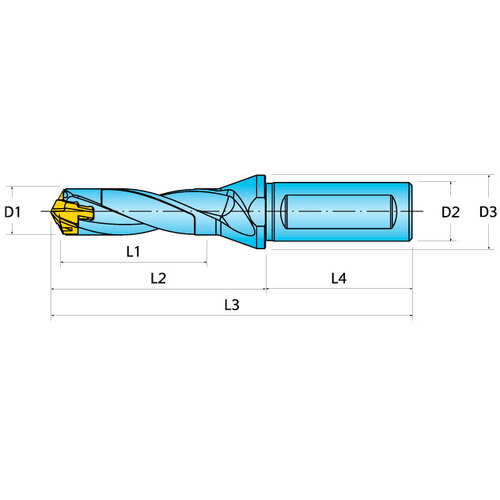

| Usable Length (LU) | 115 mm | Shank Length (LS) | 60 mm |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 23 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 23 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 23.9 mm | Body Material | Steel |
| Functional Length (LF) | 137.97 mm | Flange Diameter (DF) | 42 mm |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.631
