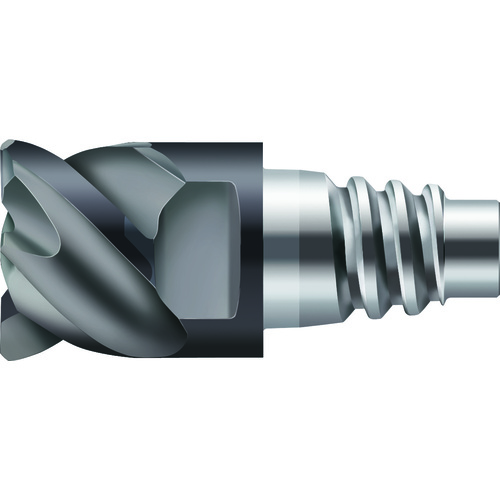

MC326.19.1E4P318 GRADE WJ30TF
| Cutting Diameter (DC) | 3/4″ | Grade | WJ30TF |
| Flute Count (NOF) | 4 | Coating | TiAlN |
| Connection Thread Nominal Size Machine Side (THSZMS) | E20 | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.413″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.413″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.728″ | Series/List # | MC326 |
| Flute Helix Angle (FHA) | 50 Degrees | Usable Length (LU) | 0.8″ |
| Overall Length (OAL) | 1.606″ | Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
Product Features
| Country of Origin | Germany |
