47Y-18UNTQRA13 IN2005

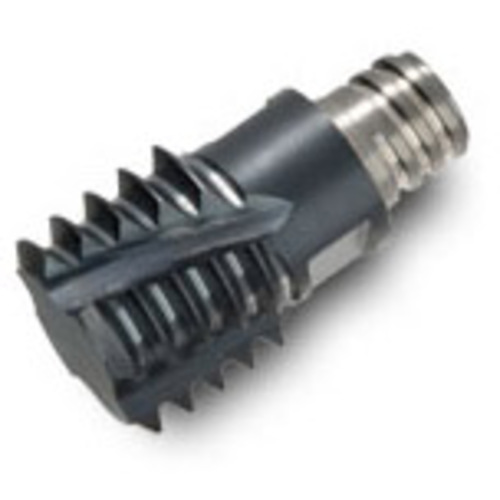

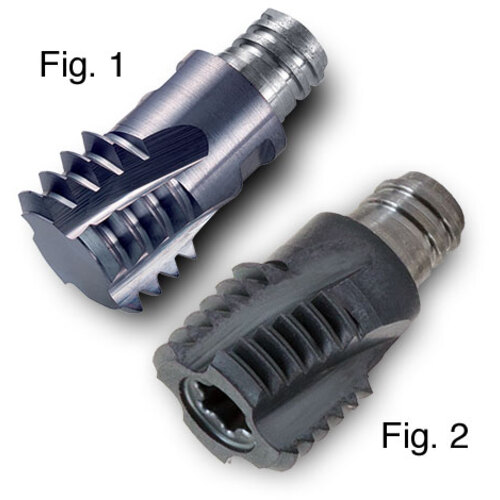

End Mill Head; 0.394″ Dia. × 0.22″ LOC × 0.7″ Max Depth × 0.3″ Shank Dia. × 1.098″ OAL ; Carbide ; TiAlN ; IN2005
| Application | | External Thread Milling | Internal Thread Milling | | Grade | IN2005 |

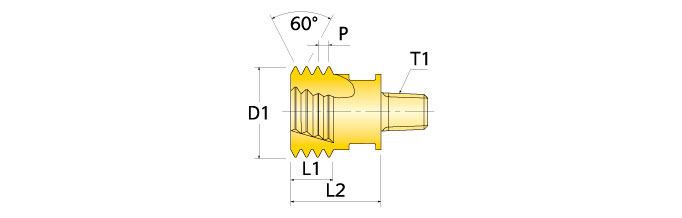

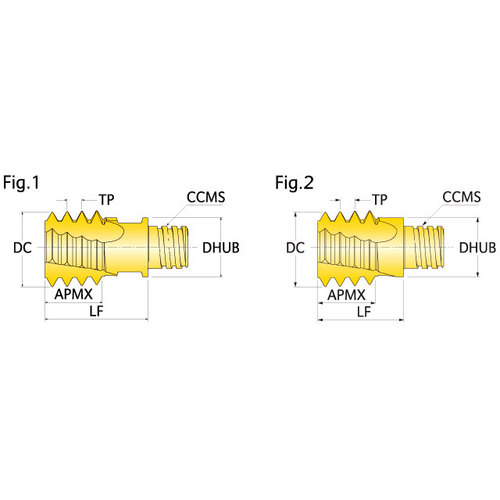

| Cutting Diameter (DC) | 0.394″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.22″ | Unified Coarse Thread (UNC) | 9/16″|5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Thread Pitch (TP) | 18″ |
| Functional Length (LF) | 0.502″ | Body Material | Carbide |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.036
