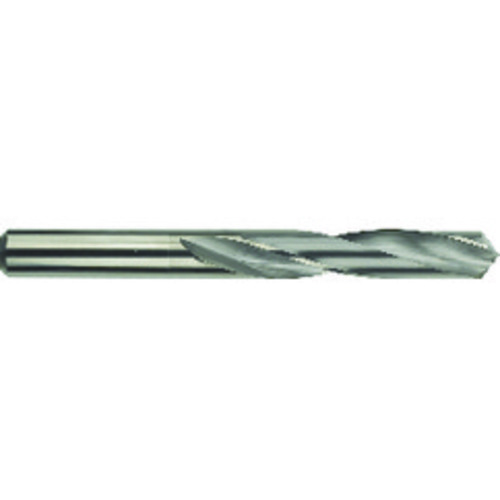

8.5 mm Dia. × 8.5 mm Shank × 64 mm Flute Length × 102 mm OAL, Standard, 118°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5374T
| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.3346″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Measurement Type | Metric |
| Length Group | Standard | Series/List # | 5374 |
| Coating | TiAlN | Usable Length (LU) | 64 mm |
| Connection Diameter Machine Side (DCONMS) | 8.5 mm | Length Chip Flute (LCF) | 64 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 102 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 25 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.14
