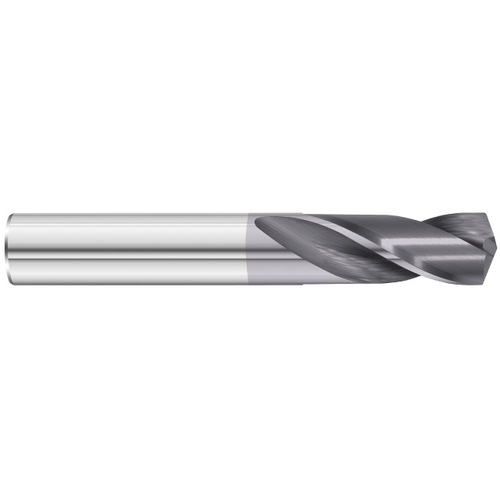

‎#20 Dia. × 0.161″ Shank × 3/4″ Flute Length × 2-1/2″ OAL, 5xD, 135°, FC7, 2xD Flute, External Coolant, Round Solid Carbide Drill

Item # 5217060

UNSPSC: 23241606

Brand: Fullerton Tool

MFG#: 13264

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

#20

Cutting Edge Material

Carbide

Decimal Equivalent

0.161″

Tool Type

Solid Carbide Drills

Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge

#20

Point Shape

Notch

Length Group

5xD

Measurement Type

Wire Gauge

Connection Diameter Machine Side (DCONMS)

0.161″

Series/List #

1500

Coolant Supply Property (CSP)

External

Length Chip Flute (LCF)

3/4″

Point Angle (SIG)

135 Degrees

Overall Length (OAL)

‎2-1/2″

Flute Helix Angle (FHA)

30 Degrees

Flute Count (NOF)

Shank Type

Round

Product Features

Remarks

2 Flutes

30° Helix

135° Notched Cam Point

Right Hand Spiral

Standard Uncoated and FC-7 Coating

Metric and Inch Based Tools

Dura Carb (Micrograin)

‎Shank Diameter Tolerance: +.0000″ -.0015″ / +0.000–0.038mm

‎Cutter Diameter Tolerance: +.0000″ -.0005″ / +0.000–0.013mm

*Items are made to order and not planned as a normal stocked item. Contact us for current stock status or for lead time at time of order. If you have an * item that you need us to stock, please contact us and we will work with you.

Country of Origin

USA

Shipping Info

Package Weight

.030
