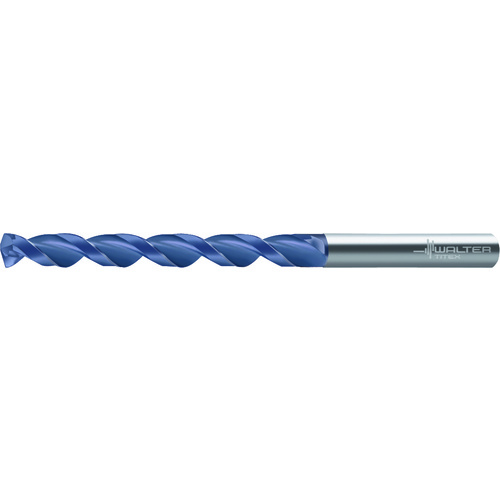

10.2 mm Dia. × 10.2 mm Shank × 87 mm Flute Length × 133 mm OAL, 8xD, 140°, 2xD Flute, External Coolant, DIN 338, Round Solid Carbide Drill A1276TFL-10.2
A1276TFL-10.2
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 10.2 mm | Shank Standard | DIN 338 |
| Decimal Equivalent | 0.4016″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.2 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 10.2 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Series/List # | A1276TFL |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 71 mm |
| Flute Helix Angle (FHA) | 40 Degrees | Length Chip Flute (LCF) | 87 mm |
| Shank Type | Round | Overall Length (OAL) | 133 mm |
Product Features
| Family Description | A1276TFL-10.2 | Country of Origin | DE |
Shipping Info
Package Weight
0.9999
