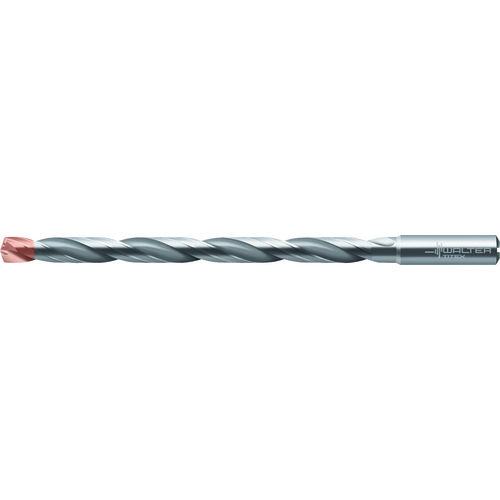

4.2 mm Dia. × 6 mm Shank × 64 mm Flute Length × 102 mm OAL, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A6589DPP-4.2
A6589DPP-4.2
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 4.2 mm | Shank Standard | DIN 6535 HA |
| Decimal Equivalent | 0.1654″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.2 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A6589DPP |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 56 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 64 mm |
| Shank Type | Round | Overall Length (OAL) | 102 mm |
Product Features
| Family Description | A6589DPP-4.2 | Country of Origin | DE |
Shipping Info
Package Weight
0.9999
