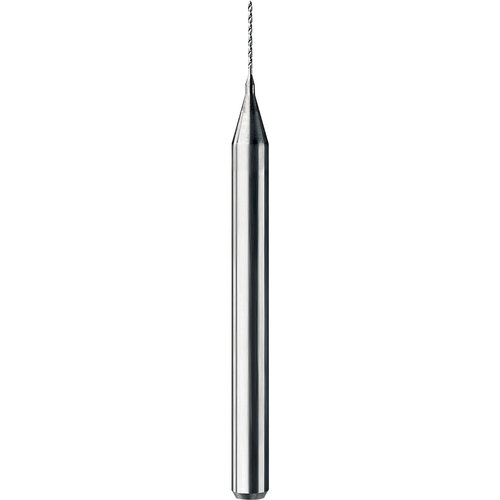

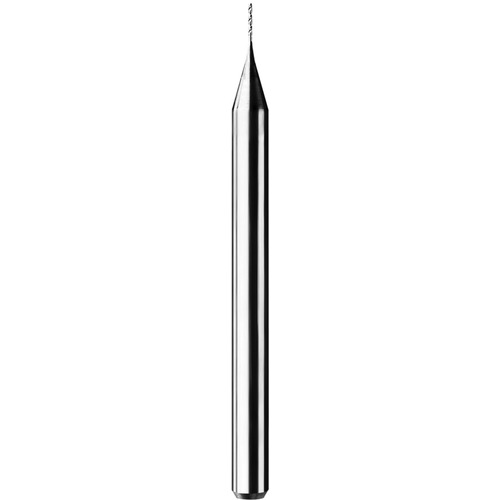

0.0295″ Dia. × 1/8″ Shank × 0.4″ Flute Length × 1-1/2″ OAL, Standard, 130°, Uncoated, 2 Flute, Straight / Cylindrical Solid Carbide Drill
SC Drill; 0.0295″ Dia. × 1/8″ Shank Dia. × 1-1/2″ OAL × 0.4″ LCF ; 130 Degrees ; Standard ; Spiral Flute ; Uncoated ; Series 105
Additional Canadian Tariff of 25 %
| Drill Bit Size / Cutting Diameter (DC) | 0.0295″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0295″ | Flute Type | Spiral |
| Length Group | Standard | Point Shape | 4 Facet |
| Coating | Uncoated | Measurement Type | Inch |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Series/List # | 105 |
| Application | Micro Drilling | Length Chip Flute (LCF) | 0.4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Overall Length (OAL) | 1-1/2″ |
| Point Angle (SIG) | 130 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # 105-0295.400 | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.011
