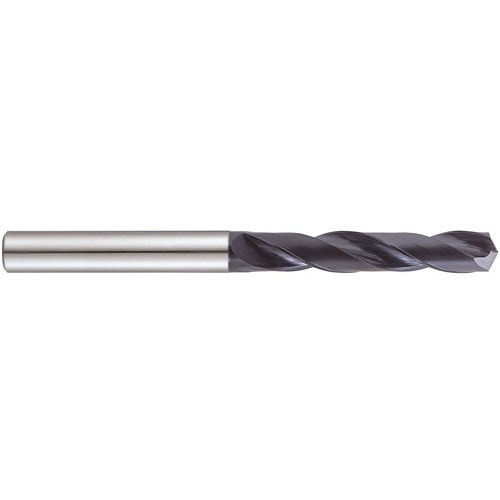

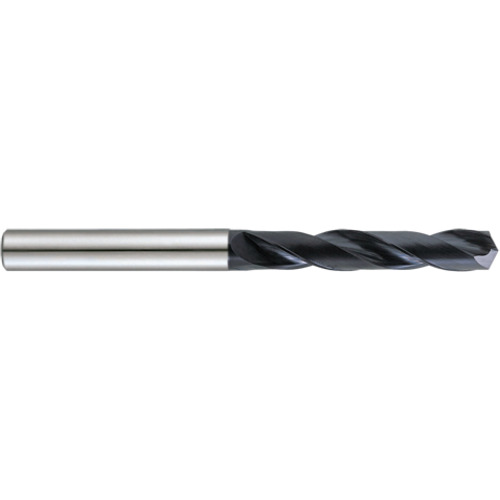

SC Drill; 21/64″ Dia. × 3/8″ Shank Dia. × 3-15/16″ OAL × 1.673″ LCF ; 140 Degrees ; 3xD ; TiAlN ; Series DH711
| Drill Bit Size / Cutting Diameter (DC) | 21/64″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 21/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3281″ | Tool Type | Carbide Dream Drill w/Coolant - 3xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.334 mm | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | DH711 |
| Coating | TiAlN | Usable Length (LU) | 42.5 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 1.673″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Overall Length (OAL) | 3-15/16″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0597″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
