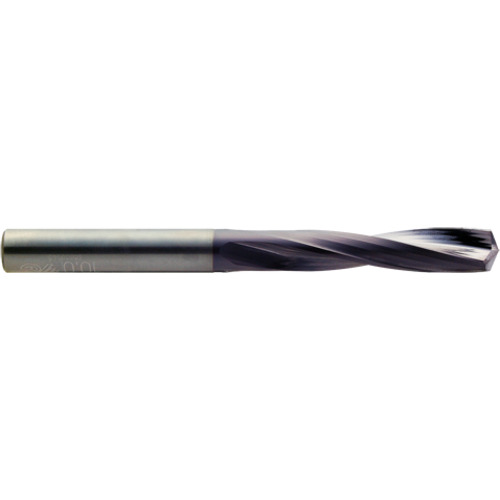

3.5MM CBD DREAM
| Drill Bit Size / Cutting Diameter (DC) | 3.5 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1378″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1378″ | Tool Type | High Hardened Steels (HRc50-HRc70) |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.5 mm | Measurement Type | Metric |
| Length Group | 5xD | Series/List # | DH500 |
| Coating | TiAlN | Usable Length (LU) | 20 mm |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Overall Length (OAL) | 50 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.6369 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.024
