CAT50 ER16X3.937
Collet Chuck ; 50 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 50″ Shank Dia. ; 0.022″ Min. Capacity ; 0.396″ Max. Capacity
| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | External |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 50″ | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | CAT |
| Style | ER16 |
Product Features

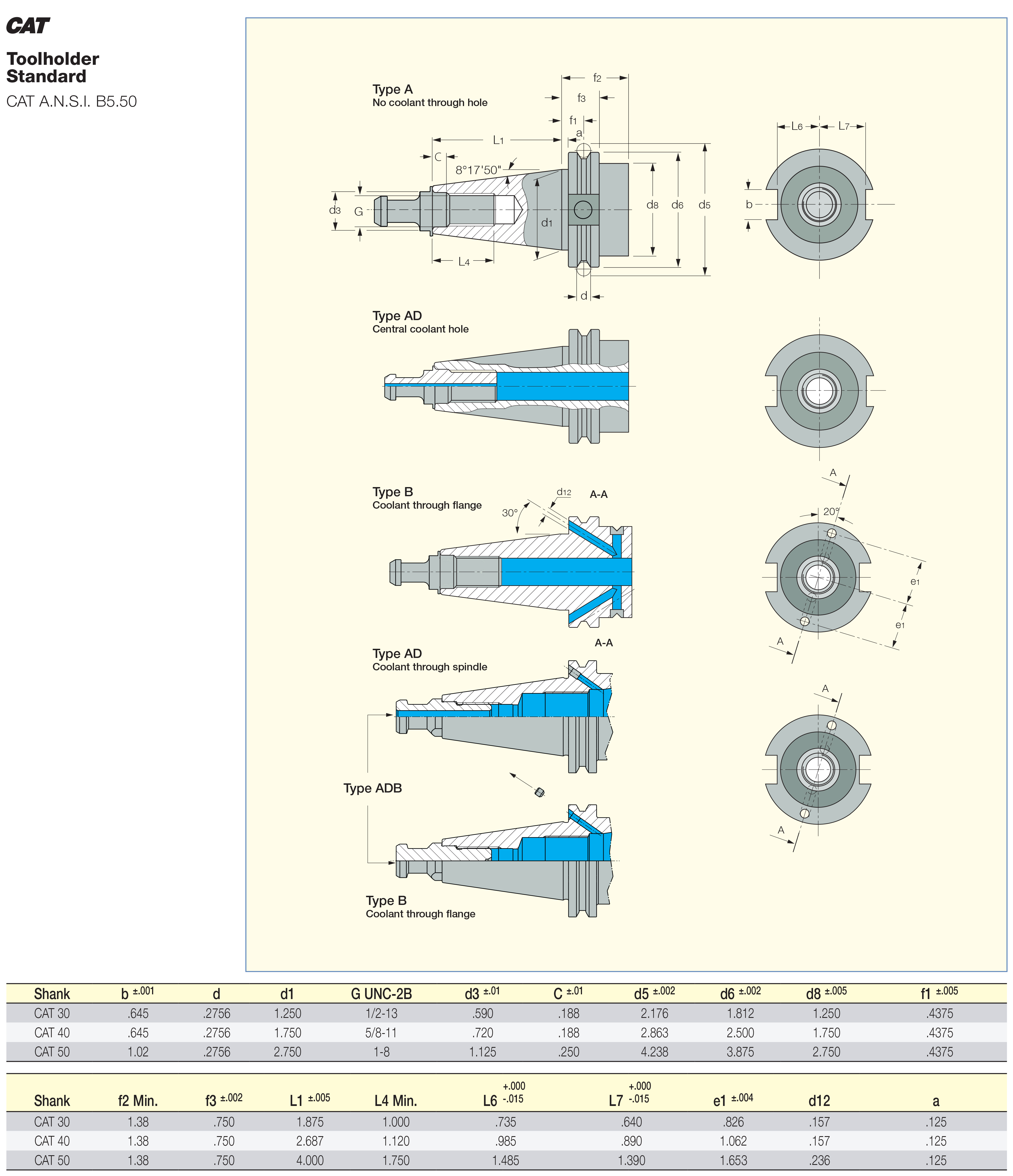

| Family Description | DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks | Country of Origin | Turkey |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Additional Fees and Notes
0
Package Weight
7.583
