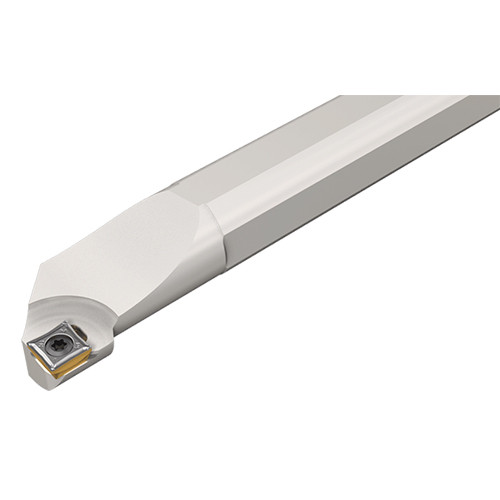

S-SUXCR 16-10 CM
Int. Turning Tool ; 12″ OAL ; 0.91″ Shank Height ; 1″ Shank Dia. ; 1.26″ Min Bore Dia. ; Steel

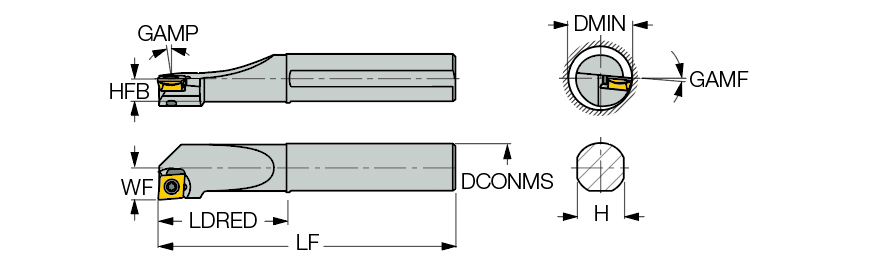

| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 80° Diamond 95° Approach | Int. 80° Q#MG 95° Approach | Int. 90° Square 45° Approach | Int. Round Face & Turn | |
| Reduced Body Diameter Length (LDRED) | 2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.91″ | Rake Angle Radial (GAMF) | -4 Degrees |
| Functional Width (WF) | 0.64″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CC95MT 10.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features

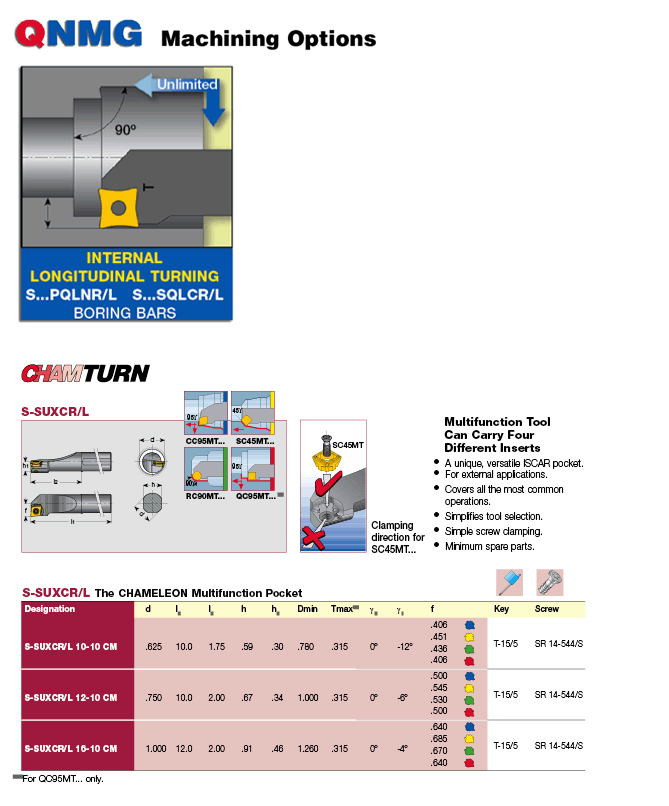

| Family Description | Screw lock boring bars carrying four different 7° clearance geometries. CHAMTURN - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
| Remarks | The displayed data refers to CC95MT inserts, for other combinations and for Tmax, click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.495
