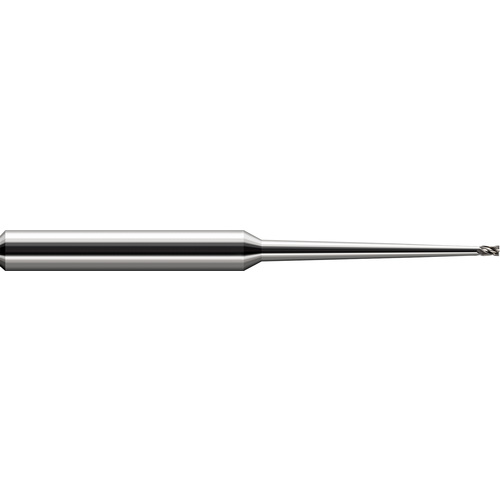

Miniature End Mills - Clearance Cutters - 0.0930″ (3/32″) Cutter Diameter × 0.1400″ (9/64″) Length of Cut × 2° 2.0000″ (2″) Taper Reach Carbide Square End Mill, 2 Flutes
| Cutting Diameter (DC) | 3/32″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 9/64″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 4″ | Neck Length (LN) | 0.1395″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.09375″ |
| Coating | Uncoated | Measurement Type | Inch |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.102
