HELIIR 25.4C-305
Grooving and turning bars with coolant holes for HELI-GRIP utility inserts

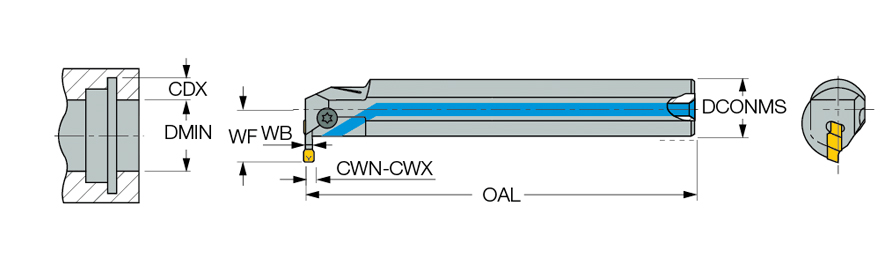

| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width Maximum (CWX) | 1/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.197″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 1.236″ | Body Material | Steel |
| Functional Width (WF) | 0.71″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 7″ | Measurement Type | Inch |
Product Features
| Family Description | Grooving and turning bars with coolant holes for HELI-GRIP utility inserts | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
1.3
