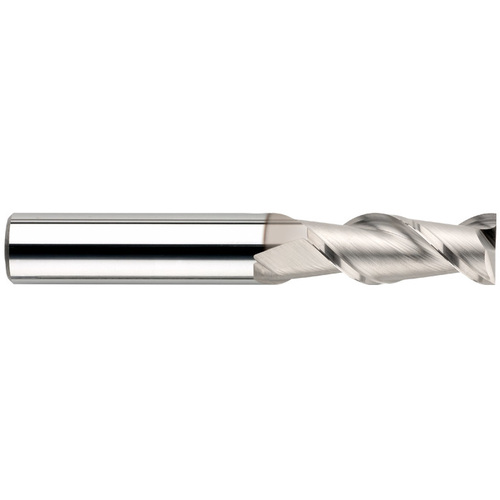

18.0 End Mill 2FL SQ TB WF - SKI-CARB 18x18x32x92
Square End Mill; 18 mm Dia. × 32 mm LOC × 18 mm Shank Dia. × 92 mm OAL ; 2 FL ; Carbide ; TiB2
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 18 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 18 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 32 mm | Usable Length (LU) | 60 mm |
| Overall Length (OAL) | 92 mm | Corner Radius (RE) | 0 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiB2 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.7087″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.628
