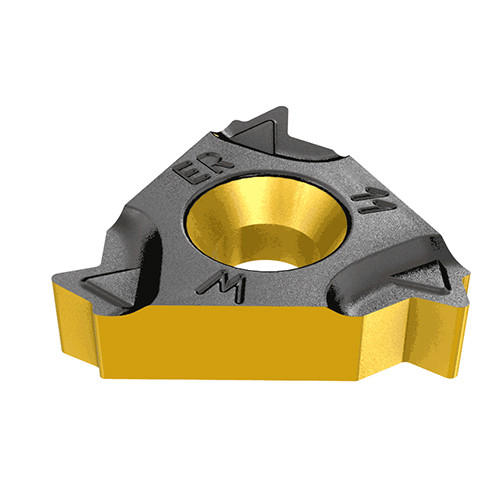

16ER 11 W IC908
Laydown Threading Insert ; 11 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 11 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0118″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | WH55 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0433″ |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | |
Product Features
| Family Description | External Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: fittings and pipe couplings. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info For threading between walls use GRIP-type insert TIP-BSW. Tolerance: Medium Class |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.009
