12S1X-1202781R01

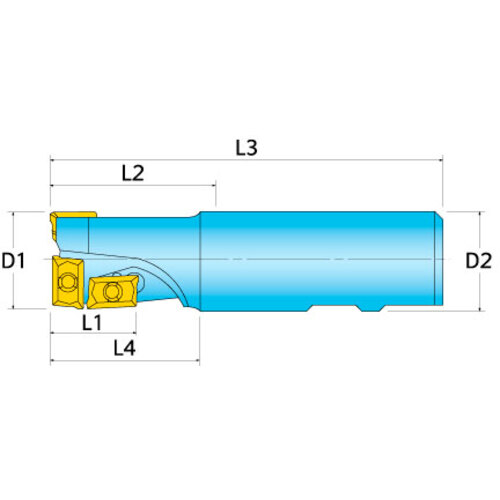

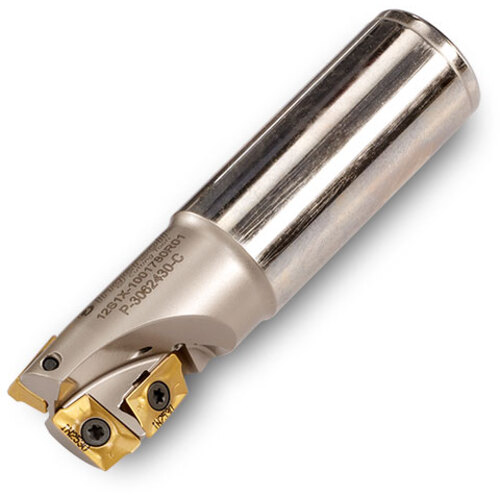

Indexable End Mill; 1-1/4″ Dia. × 0.93″ LOC × 1-1/4″ Shank Dia. × 5″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.93″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Country of Origin | Usa |
