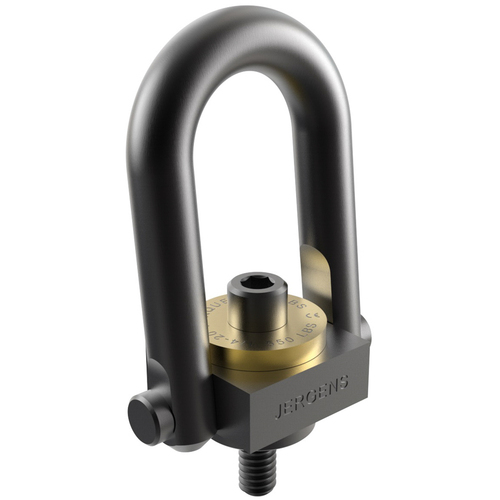

Traditional Center-Pull Hoist Ring with Standard U-Bar, 7,000 kg Load Capacity, M30 × 3.5 Thread Size
| Type | Traditional Center-Pull Hoist Ring with Standard U-Bar | Load Capacity | 7,000 kg |
| Pivot Angle | 180 Degrees | Thread Size | M30 × 3.5 |
| Swivel Angle | 360 Degrees |
Product Features
| Remarks | •Full 360° Swivel and 180° Pivot Action.
•Rated at 5:1 Strength Factor.
•Material: Alloy Steel.
•Finish: Black Oxide (Except Washer).
•U-Bar, Bolt, Pins, Base, Washer and Bushing are Magnetic Particle Inspected.
•Washer: Zinc Plated with Gold Colored (Inch), Clear/Blue (Metric) Conversion Coating.
•Proof Tested to 200% of Rated Load Capacity.
•Certificate of Proof Test provided.
•3D Solid Models available in multiple formats. | Country of Origin | USA |
