1AX2Q-12020S9R01
Insert corners: .020″, .031″, .062″, .118″, .197″, .250″ R

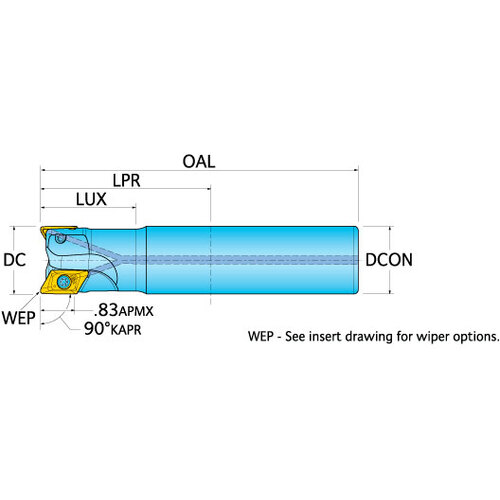

| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 1.81″ |
| Cutting Diameter (DC) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.83″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 17 Degrees | Body Material | Steel |
| Application | | BALANCIN | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 5-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .020″, .031″, .062″, .118″, .197″, .250″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
