1AX2K-10022S1R01

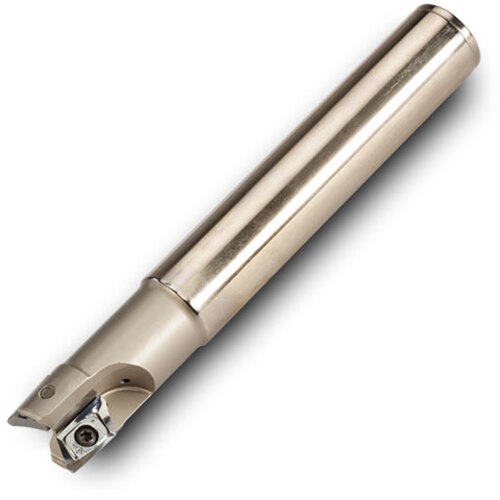

Indexable End Mill; 1″ Dia. × 0.63″ LOC × 1″ Shank Dia. × 7″ OAL × 2.05″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Usable Length (LU) | 2.05″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 7″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 22 Degrees | Body Material | Steel |
| Application | | BALANCIN | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 4-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .015″, .031″, .062″, .093″, .125″, .197″ R | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.002
