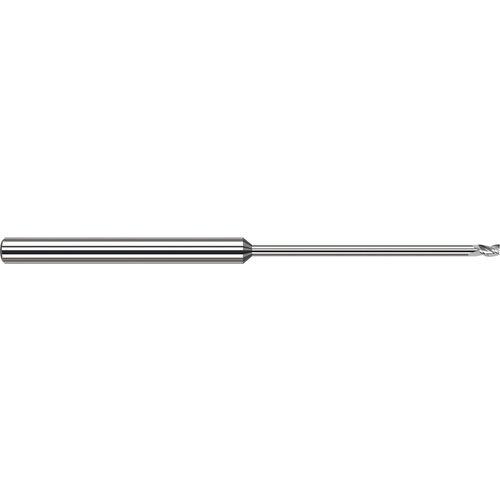

Miniature End Mills - Long Reach, Stub Flute - 0.0310″ (1/32″) Cutter Diameter × 0.0460″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Square End Mill, 3 Flutes
SQ End Mill; 1/32″ Dia. × 0.046″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 0.046″ | Length Group | 20D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.03125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.016
