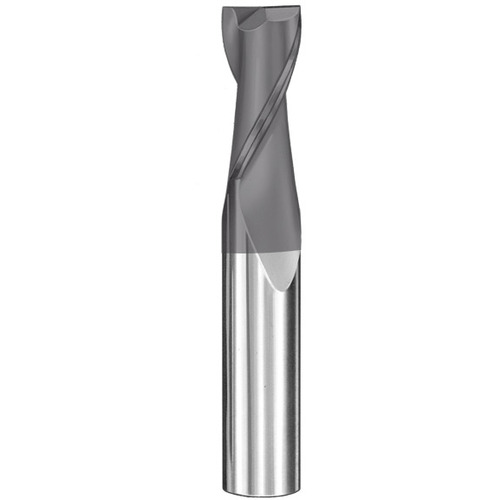

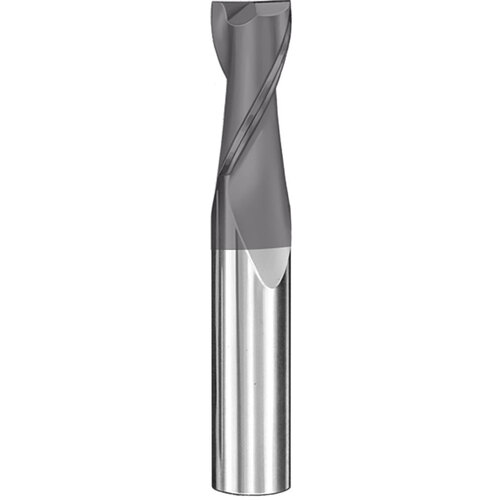

15/64 End Mill 2FL SQ TA - SER 03S 15/64x1/4x3/4x2-1/2
SQ End Mill; 15/64″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 03S
| Cutting Diameter (DC) | 15/64″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 1-3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.234375″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 03S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.04
