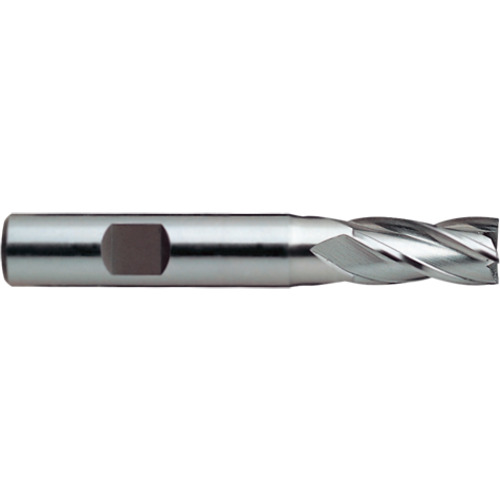

Square End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 3-7/8″ OAL ; 4 FL ; HSSCo8 ; TiAIN F ; Series E2039
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | HSSCo8 and HSS 4 Flute Regular Length Center Cutting |
| Overall Length (OAL) | 3-7/8″ | Length Group | Regular |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 0.75″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E2039 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.448
