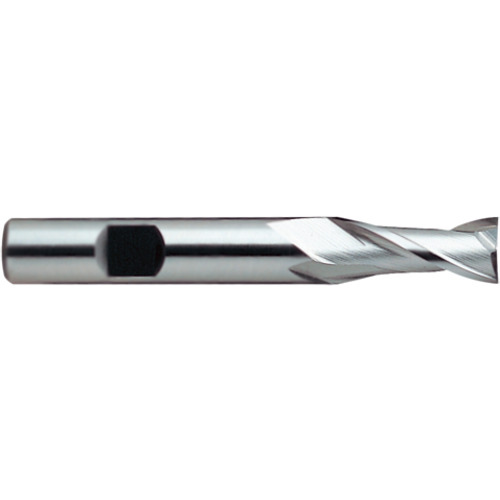

Square End Mill; 1-3/4″ Dia. × 1-5/8″ LOC × 1-1/4″ Shank Dia. × 4-1/8″ OAL ; 2 FL ; HSS ; TiCN ; Series E1030
| Cutting Diameter (DC) | 1-3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | 2FL SE HSS, Regular Length |
| Overall Length (OAL) | 4-1/8″ | Length Group | Regular |
| Cutting Edge Material | HSS | Decimal Equivalent | 1.75″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E1030 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
5.75
Package Width
2
Package Height
2
Package Weight
1.603
