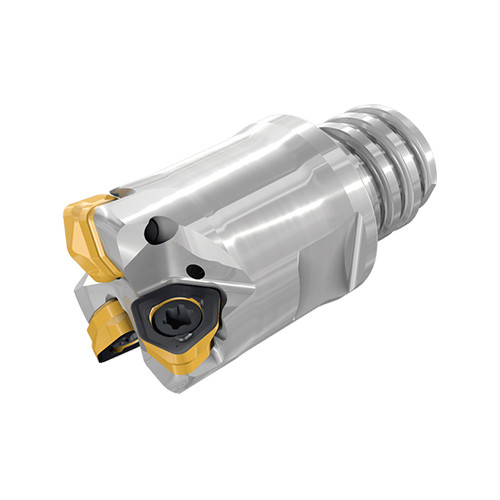

FFT3 EFMD1.00-6-MMT15-03
Indexable End Mill; 1″ Dia. × 0.0236″ LOC × 0.96″ Shank Dia. × 1.85″ OAL ; 17 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Diameter (DC) | 0.83″ | Drive Size (DRVS) | 0.787″ |
| Cutting Item Count (CICT) | 6 | Torque (TQ) | 4.43 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1″ |
| Functional Length (LF) | 1.181″ |
Product Features
| Family Description | Endmills with a MULTI-MASTER threaded adaptation carrying single-sided small trigon inserts for fast feed milling | Country of Origin | Israel |
| Remarks | Radius for programming .04 To generate a straight surface without cusps, the width of cut must not exceed DC |
