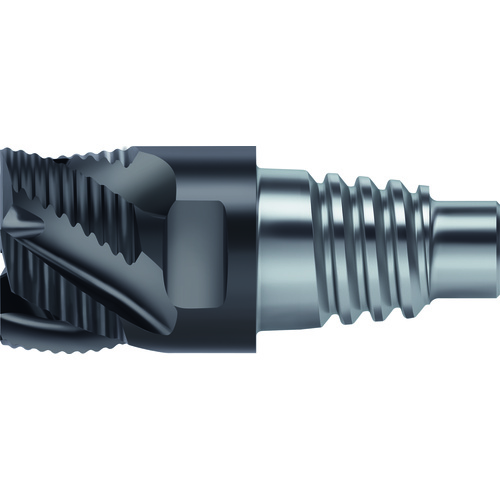

MC320-12.0E4P-WJ30TF EM
| Cutting Diameter (DC/DCX) | 12 mm | Corner Radius (RE) | 0.35 mm |
| Cutting Diameter (DC) | 12 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6.5 mm | Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 28.3 mm | Series/List # | MC320 |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Measurement Type | Metric |
| Usable Length (LU) | 15 mm | Body Material | Carbide |
| Flute Count (NOF) | 4 |
Product Features
Country of Origin
DE
Shipping Info
Package Weight
0.011
