15N1H032043X8R00

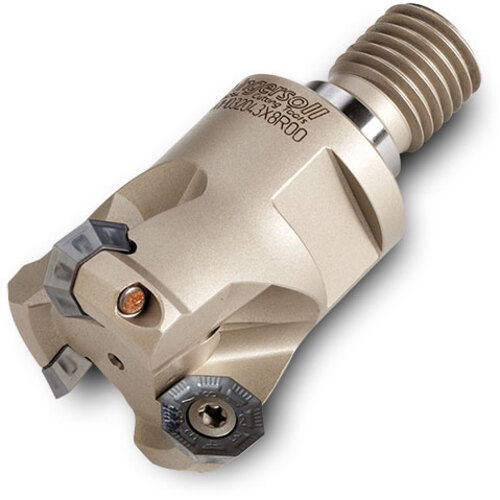

Indexable End Mill; 1.57″ Dia. × 0.32″ LOC

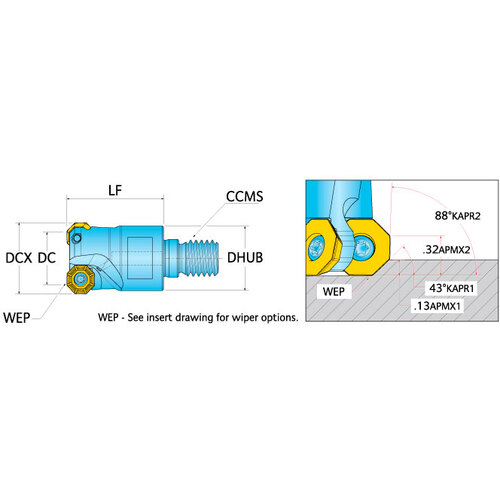

| Cutting Diameter (DC/DCX) | 1.57″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.26″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.32″ | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 9 Degrees | Hub Diameter (DHUB) | 1.13″ |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1.57″ |
| Functional Length (LF) | 1.693″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.441
