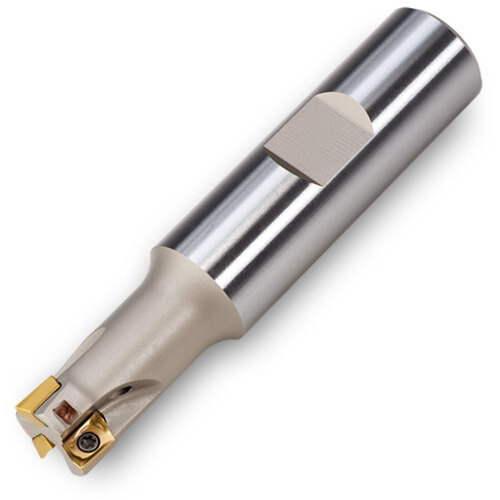

12J1D020030W4R00
32-63 Ra surface finishes when engaging the integrated wiper (WEP) Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed
| Cutting Diameter (DC/DCX) | 20 mm | Usable Length (LU) | 30 mm |
| Cutting Diameter (DC) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 5.7 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Protruding Length (LPR) | 40 mm |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the integrated wiper (WEP) Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed | Country of Origin | Usa |
Shipping Info
Package Weight
0.375
