12P1D008025T1R00

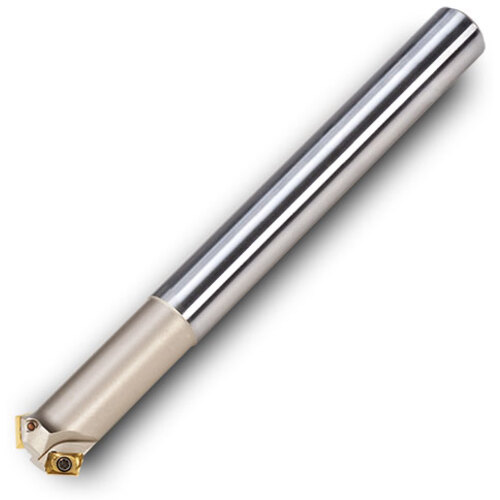

Indexable End Mill; 17.7 mm Dia. × 2.7 mm LOC × 10 mm Shank Dia. × 65 mm OAL ; 30 Degrees
| Cutting Diameter (DC/DCX) | 17.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 8 mm | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.7 mm | Angle | 120 Degrees |
| Overall Length (OAL) | 65 mm | Measurement Type | Metric |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 17.7 mm |
Product Features
| Family Description | Shank modifications can be made by cutting off the back to desired length | Country of Origin | Usa |
