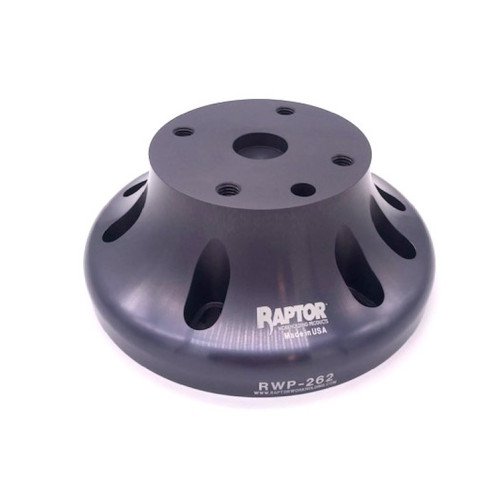

Raptor RWP-262 Aluminum Medium Universal Riser

Item # 6636974

Brand: Raptor Workholding

MFG#: RWP-262

Quantity Available

Type

Riser

Jaw Width

N/A

Length

N/A

Height

3.5″

Width

N/A

Material

Aluminum

Number of Pieces

N/A

Product Features

Remarks

‎Medium Universal Riser Enables compatible fixtures to be mounted on the pallet of the following machines: Mori Seiki NMV5000, DMU50/50eco, NMV3000 metric/english & multiple other machines. Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia) Mounts: All fixtures with a Raptor Interface

Specifications:

Diameter in.: 8.980
Fixture Material: Aluminum
Height in.: 3.500
Material : 7075-T6511 Aluminum
Bolt Circle Diameter in.: 6.000 to 7.030 Slotted bores for M12 or 1/2 SHCS
Boss / Hole: 1.000 Diameter × 0.30 Receiving Hole
Machine Type: DMG Mori DMU50/50eco, Mori NMV3000 (Inch Pallet), Mori NMV3000 (Metric Pallet), Mori NMV5000

Country of Origin

USA
