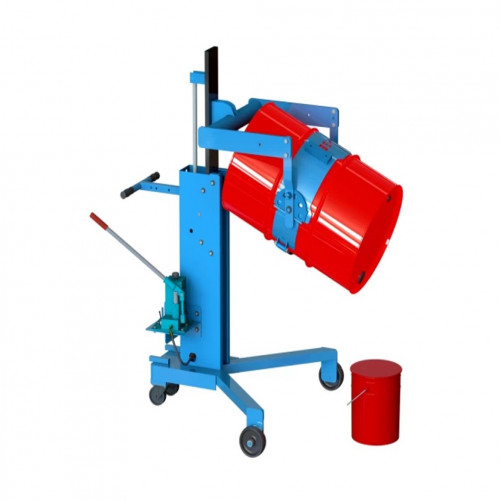

Mobile Drum Palletizers / Pourers, Model 82A, with hand pump drum lift and V-Shape base to access pallet, 600lbs Capacity

Item # 4692818

UNSPSC: 24101900

Brand: Morse Mfg. Co., Inc.

MFG#: 82A

Quantity Available

Type

Mobile Palletizers / Pourers

Overall Length

43″

Drum Capacity

600 lbs

Caster Diameter

N/A

Load Capacity

600 lbs

Caster Material

N/A

Overall Height

71″

Drum Rotation

N/A

Overall Width

48.5″

Material

Steel

Product Features

Remarks

Palletizer / Pourer to lift, transport and pour 55-gallon (210 liter) steel drum. Has hand pump drum lift and manual drum tilt.Specific Features to model 82A:

Model 82A has Hand Pump Manual Drum Lift

All 82A - Drum Palletizers that Pour:

Lift, Move, Palletize and Pour Drum
Grasp drum and turn by hand 360 degrees in either direction
Drum carrier can be locked with drum in vertical position for transporting, or locked in horizontal position to pour
Release tilt locks for hand-controlled tilt at any angle
Move drum on and off shipping pallets, spill containment pallets, and drum dollies
V-Shaped base to access drum at corners of pallet
Straddle pallet up to 41″ (107 cm) wide and 7″ (17.8 cm) tall
Lift upright drum up to 20″ (50.8 cm) above floor
Dispense drum at up to 26″ (66 cm) high

MORCINCH Drum Handling System:

Automatically adjusts for 22″ to 23.5″ (56 to 59.7 cm) diameter drum
Install correct MORCINCH Kit to handle plastic or fiber drum
Insert correct size Diameter Adapter for each smaller drum

Key Specifications of Model 82A Series:

Overall width: 48.5� (123.2 cm)
Overall length: 43� (109.2 cm)
Turning radius: 53� (135 cm)
Legs are 9� (22.9 cm) high and reach 20.75� (52.7 cm) in front of upright stanchion
(2) 4� (10.2 cm) swivel casters at back
(2) 6� (15.2 cm) wheels at front

Country of Origin

USA
