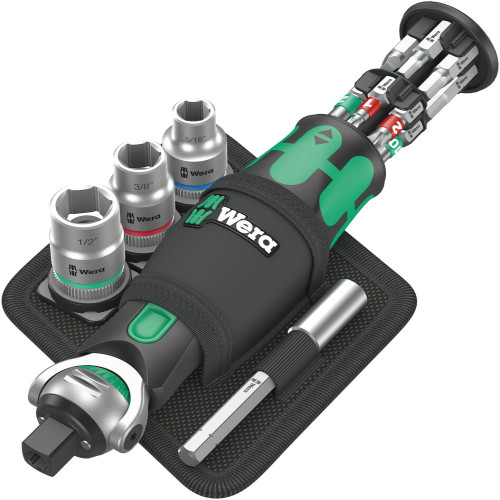

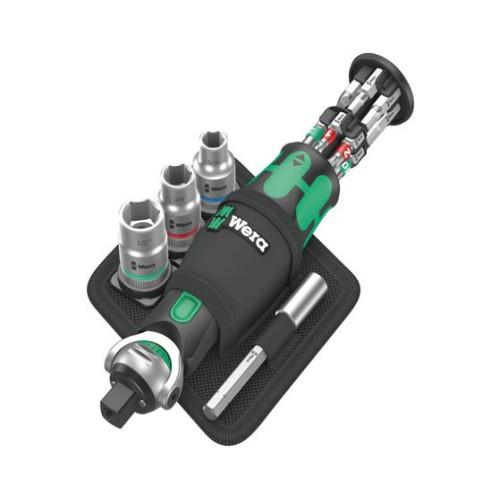

Wera 8009 05004283001 Zyklop Pocket Imperial Set 2, 18 Pieces

‹ ›

Wera 8009 05004283001 Zyklop Pocket Imperial Set 2, 18 Pieces

Item # 6109172

UNSPSC: 5004283001

Brand: Wera

MFG#: 5004283001

Quantity Available

Type

Ratchet Set in Imperial

Tool Storage Included

Textile Holster to be Added to Belt and Docked Onto the Wera 2go System

Number of Pieces

Tool Storage Type Included

Holster

Set Includes

(1) 8009 Zyklop Pocket, (1) 893/1/1 Universal Bit Holder, (2) 851/1 BTZ Bits in Two Sizes, (4) 867/1 BTZ TORX Bits in Four Sizes, (4) 840/1 Z Bits Ranging in Size 1/8″x25mm to 1/4″x25mm, (2) 868/1 Z Square-Plus Bits in Two Sizes, 8790 HMB Zyklop 3/8″ Socket Ranging in Size From 5/16″x29mm to 1/2″x29mm, (1) 9468 Zyklop Pocket Holster, Empty, and (1) Hook and Loop Fastener Strip 70

Recommended Tool Boxes

N/A

System of Measurement

Imperial

Product Features

Remarks

Wera 05004283001 8009 Zyklop Pocket Set 2, 18 Piece Set in Imperial - Key Features:

Compact Zyklop ratchet with integrated bit magazine
Clever design ratchet head doubles up both as 3/8″ square drive ratchet for sockets, but also an integral 1/4″ hexagon driver for screwdriver bits
Freely pivoting ratchet head with FIVE predefined locking positions
Fine tooth reversible ratchet (72 teeth) for a low return agle of only 5 degrees
Captive and freely swivelling bit magazine for easy removal and secure storage of the bits
Univeral holder with stainless steel sleeve and strong permanent magnet, can be used as extension
Robust textile holster to be attached to the belt and docked onto the Wera 2go System

Combination Tool Mounting: The magnetic direct mounting is suitable for 3/8″ sockets as well as 1/4″ bits. Integrated Bit Magazine: A captive, freely swivelling bit magazine for 12 bits (1/4″, 25 mm length) is integrated in the handle of the compact ratchet. Swiveling Bit Magazine: The swiveling bit magazine allows for the bits to be removed easily in almost any situation and cannot be lost. The bits are safely stored. Freely Pivoting Ratchet Head: The ratchet head pivots freely and can be locked into any defined position by using the slide switch that is positioned on either side. It is even possible to work in the very confined and difficult to access areas with enhanced hand clearance. The predefined locking positions at Zero Degrees, 15 Degress, and 90 Degrees both to the left and right, ensure safe working without any slipping of the ratchet head. Locking the Ratchet Head: Sliding switch on both sides, the ratched head can be locked at any of the pre-defined positions of Zero degrees, 15 Degrees, and 90 Degrees to the left or right. Small Return Angle: The fine toothing with 72 teeth allows for the low return angle of only 5 degrees for working in constricted screwdriving situations. Simple Direction Change: The Zyklop Pocket ratchet can be quickly and easily reversed for the clockwise/counterclockwise rotation in any position using the knurl. Wera 05004283001 8009 Zyklop Pocket Set 2, 18 Piece Set in Imperial Includes:

Qty 1: 8009 Zyklop Pocket 3/8″x1/4″x133 mm
Qty 1: 893/1/1 Universal Bit Holder 1/4″x75 mm
Qty 2: 851/1 BTZ bits 05056420001 PH 1 × 25 mm and 05056422001 PH 2 × 25 mm
Qty 4: 867/1 BTZ TORX bits One of each of the following: 05066120001 TX 10 × 25 mm, 05066122001 TX 15 × 25 mm, 05066124001 TX 20 × 25 mm, and 05066126001 TX 25 × 25 mm
Qty 4: 840/1 BTZ bits One of each of the following: 05135073001 1/8″ × 25 mm, 05135074001 5/32″ × 25 mm, 05135075001 3/16″ × 25 mm, and 05135076001 1/4″ × 25 mm
Qty 2: 868/1 Z Square-Plus Bits 05066405001 # 1 × 25 mm and 05066410001 # 2 × 25 mm
Qty 3: 8790 HMB Zyklop 3/8″ socket One of each of the following: 05003570001 5/16″ × 29 mm, 05003572001 3/8″ × 29 mm, and 05003574001 1/2″ × 29 mm

Full Description of Wera 05004283001 8009 Zyklop Pocket Set 2, 18 Piece Set in Imperial: Compact Zyklop ratchet with bit magazine for the pocket. Magnetic direct mounting for 1/4″ bits and 3/8″ sockets. Rapid tool change thanks to the non-locking mounting. As the head is lockable at Zero Degrees, 15 Degrees and 90 Degrees, the tool can be used as a ratchet and as a ratchet screwdriver. The fine toothing with 72 teeth allows for a low return angle of 5 degree. Wide range of applications thanks to 12 bits integrated in the handle. The robust ratchet mechanism allows for ample torque. Perfect combination of a Zyklop ratchet with a 12-piece screwdriver set. The 75 mm long universal holder for 1/4″ bits can be used as an extension. Including sockets in the commonest dimensions. One robust textile holster 9468 to be attached to the belt and docked onto the Wera 2go system.

Country of Origin

Shipping Info

Package Weight

0.99
