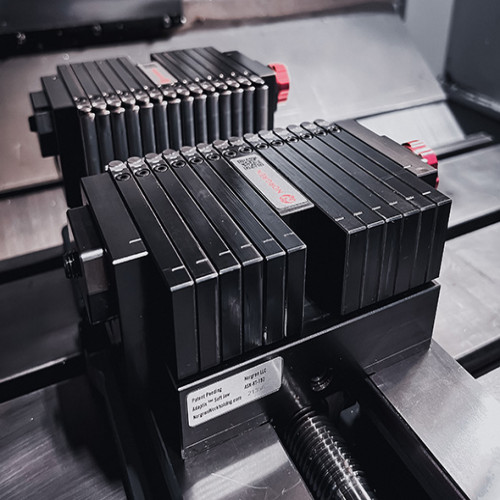

Adaptix Single Station Adaptive Vise Jaw System - Kurt Model DX6 Bundle

Item # 5866383

Brand: Adaptix

MFG#: ‎ASJ-KT-150-HST-RO-06

Quantity Available

Type

Single Station

Number of Stations

Single

Jaw Width

171mm

Base Length

466.3mm

Jaw Opening Capacity

211mm

Base Motion Type

N/A

Jaw Height

78mm

Maximum Clamp Force

7,000ft/lbs

Orientation Type

N/A

Product Features

Remarks

The Future of Fixturing is here! Introducing the latest innovation in adaptive workholding, ADAPTIX by Norgren! A workholdling solution designed and engineered by expert machinists to increase throughput, minimize setup time, and simplify machining complex parts. Utilizing a combination of hardened steel Fingers, Tips, and Studs, the ADAPTIX System allows users to create a rigid hold in seconds. Traditional workholding methods consist of designing soft jaws, writing machine programming, sourcing materials, and various other steps that result in extended machine downtime. These traditional methods can often be an inefficient use of time and drain hours of production efforts from a manufacturing facility. That's where ADAPTIX comes in! Not only does the ADAPTIX System allow users to easily fixture complex part profiles, it also:

Increases part flow as a result of less time spent switching workholding between cycles.
Lowers material cost by reducing or eliminating the need to create a variety of jaws.
Better leverage your skilled labor by allowing them to consistently fixture faster.

For those customers attempting to better their bottom line...look no further than faster fixturing with ADAPTIX by Norgren! Full Specifications

Jaw Height: 78mm
Jaw Width: 171mm
Overall Length: 466.3mm
Overall Width: 212mm
Overall Height: 150.5mm
Maximum Jaw Opening Capacity: 211mm
Maximum Clamping Force (Ft/Lb): 7,000ft/lbs
